javax.microedition.amms.control.audio3d
Interface OrientationControl

All Superinterfaces:

javax.microedition.media.Control

All Known Subinterfaces:

DirectivityControl, MacroscopicControl

public interface OrientationControl
extends javax.microedition.media.Control

OrientationControl is an interface for manipulating the virtual orientation of an object in the virtual acoustical space. Usually, the object is either the listener via the Spectator or a source via a SoundSource3D. In the case of a sound source, subinterfaces DirectivityControl and/or MacroscopicControl are used instead of the superinterface OrientationControl.

Orientation

Orientation is a representation of a direction in a virtual acoustical space. Orientation can be defined in two ways by using this interface: in rotation angles around object's coordinate axes or by using orientation vectors. The initial orientation is towards the negative Z-axis up-direction being towards the positive Y-axis. Both of the orientation definitions (rotation angles and orientation vectors) use this initial orientation as the reference and all the rotations are relative to this.

Default Values

The default orientation of all orientation controls (whether the application has obtained them or not) is pointing directly towards the negative Z-axis:

frontVector = (0, 0, -1000)
upVector = (0, 1000, 0)

In rotation angles this is equivalent to:

heading = 0
pitch = 0
roll = 0

See Also:

Control, DirectivityControl, LocationControl

Method Summary

int[]	getOrientationVectors() Gets the orientation of the object using two vectors.
void	setOrientation(int[] frontVector, int[] aboveVector) Turns the object to the new orientation.
void	setOrientation(int heading, int pitch, int roll) Turns the object to the new orientation.

Method Detail

setOrientation

void setOrientation(int heading,
                    int pitch,
                    int roll)

Turns the object to the new orientation. The new orientation is given using rotation angles.

The rotation angles. Positive rotation directions around the coordinate axes are counterclockwise when looking towards the origin from a positive coordinate position on each axis. The initial orientation (heading=0, pitch=0 and roll=0) is towards the negative Z-axis (up-direction being towards positive Y-axis). Orientation is defined in three angles: heading that represents rotation around the object's Y-axis, pitch that represents rotation around the object's X-axis, and roll that represents rotation around the object's Z-axis. Orientation is applied in the following order: heading, pitch, and roll. Therefore, notice that heading rotates the X-axis and therefore affects the pitch, and similarly heading and pitch rotate the Z-axis and therefore affect the roll.

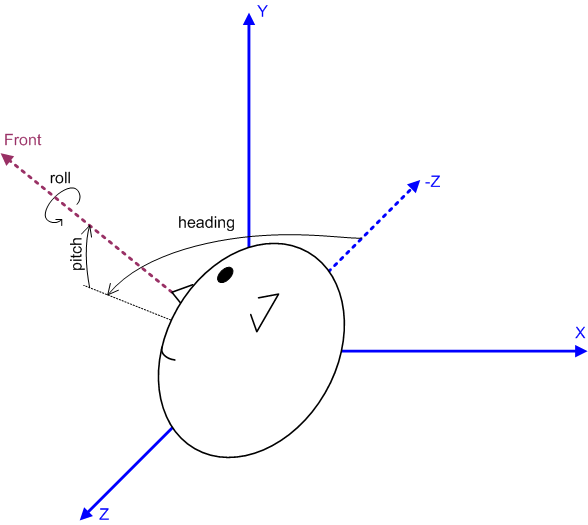

Orientation defined using rotation angles.

An implementation note: the transformation (without scaling) from heading, pitch and roll to Front and Up vectors is the following:

• x_front=-sin(heading)*cos(pitch)
• y_front=sin(pitch)
• z_front=-cos(heading)*cos(pitch)
• x_up=-sin(roll)*cos(heading)+cos(roll)*sin(pitch)*sin(heading)
• y_up=cos(pitch)*cos(roll)
• z_up=sin(roll)*sin(heading)+cos(roll)*cos(heading)*sin(pitch)

Parameters:

heading - the rotation around the Y-axis in degrees

pitch - the rotation around the X-axis in degrees

roll - the rotation around the Z-axis in degrees

setOrientation

void setOrientation(int[] frontVector,
                    int[] aboveVector)
                    throws java.lang.IllegalArgumentException

Turns the object to the new orientation.

The orientation is specified using two vectors, one specifying the direction of the Front vector of the object in world coordinates, and another specifying the Above vector of the object. The "Right" and Up vectors of the object are calculated by first calculating the "Right" vector as the cross product of the Front vector and the Above vector, and then the Up vector as a cross product of the "Right" and Front vectors. (The magnitudes of the Front and Up vectors may be adjusted by the implementation.)

The specified vectors need not be unit vectors (i.e. normalized): they can have any non-zero magnitude.

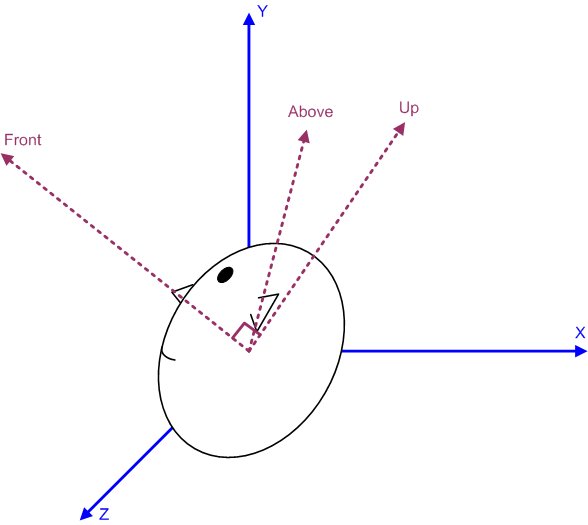

Orientation defined using Front and Above vectors. Please notice the right-angle between Front and Up vectors, but not between Front and Above vectors.

Parameters:

frontVector - a 3-element array specifying the Front vector of the object in the world coordinate system

aboveVector - a 3-element array specifying the Above vector mentioned above

Throws:

java.lang.IllegalArgumentException - if any argument has fewer than or greater than 3 elements in the array; or if any argument is the zero vector; or if the specified vectors are parallel. (The orientation of the object will remain unchanged.)

getOrientationVectors

int[] getOrientationVectors()

Gets the orientation of the object using two vectors.

Returns:

a 6-element array that has first the Front vector and then the Up vector

See Also:

setOrientation(int[] frontVector, int[] aboveVector)
